| DN10 (3/8 ") | DN15 (1/2 ") | DN20 (3/4 ") | DN25 (1 ") | DN40 (1-1/2 ") |
| DN50 (2 ") | DN80 (3 ") | DN100 (4 ") | DN125 (5 ") | DN150 (6 ") |
| DN200 (8 ") | DN250 (10 ") | DN300 (12 ") | DN350 (14 ") | DN400 (16 ") |
| DN450 (18 ") | DN500 (20 ") | DN550 (22 ") | DN600 (24 ") |
| Nominal boyut | Dış çapında eğim | Merkezi bitirmek | ||
|
|

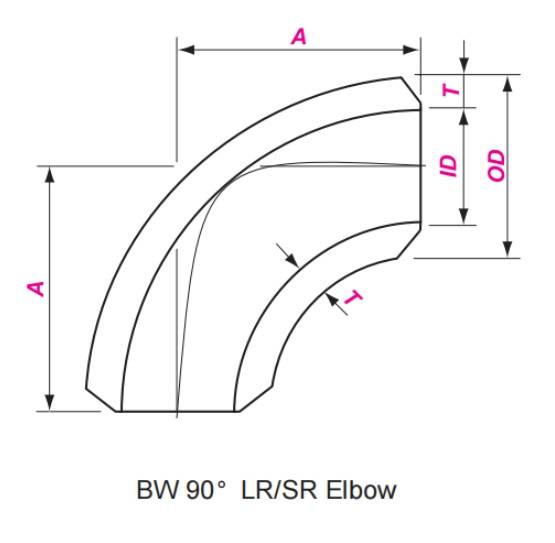

90 ° dirsekler | |||
| DN | NPS | İLE İLGİLİ | A | |
| LR | SR | |||
| 15 | 1/2 | 21.3 | 38 | - |
| 20 | 3/4 | 26.7 | 38 | - |
| 25 | 1 | 33.4 | 38 | 25 |
| 32 | 1 1/4 | 42.2 | 48 | 32 |
| 40 | 1 1/2 | 48.3 | 57 | 38 |
| 50 | 2 | 60.3 | 76 | 51 |
| 65 | 2 1/2 | 73.0 | 95 | 64 |
| 80 | 3 | 88.9 | 114 | 76 |
| 90 | 3 1/2 | 101.6 | 133 | 89 |
| 100 | 4 | 114.3 | 152 | 102 |
| 125 | 5 | 141.3 | 190 | 127 |
| 150 | 6 | 168.3 | 229 | 152 |
| 200 | 8 | 219.1 | 305 | 203 |
| 250 | 10 | 273.0 | 381 | 254 |
| 300 | 12 | 323.8 | 457 | 305 |
| 350 | 14 | 355.6 | 533 | 356 |
| 400 | 16 | 406.4 | 610 | 406 |
| 450 | 18 | 457.0 | 686 | 457 |
| 500 | 20 | 508.0 | 762 | 508 |
| 550 | 22 | 559.0 | 838 | 559 |
| 600 | 24 | 610.0 | 914 | 610 |
| 650 | 26 | 660.0 | 991 | 660 |
| 700 | 28 | 711.0 | 1067 | 711 |
| 750 | 30 | 762.0 | 1143 | 762 |
| 800 | 32 | 813.0 | 1219 | 813 |
| 850 | 34 | 864.0 | 1295 | 864 |
| 900 | 36 | 914.0 | 1372 | 914 |
| 950 | 38 | 965.0 | 1448 | 965 |
| 1000 | 40 | 1016.0 | 1524 | 1016 |
| 1050 | 42 | 1067.0 | 1600 | 1067 |
| 1100 | 44 | 1118.0 | 1676 | 1118 |
| 1150 | 46 | 1168.0 | 1753 | 1168 |
| 1200 | 48 | 1219.0 | 1829 | 1219 |
| 1300 | 52 | 1321.0 | 1981 | 1321 |
| 1400 | 56 | 1422.0 | 2134 | 1422 |
| 1500 | 60 | 1524.0 | 2286 | 1524 |
| 1600 | 64 | 1626.0 | 2438 | 1626 |
| 1700 | 68 | 1727.0 | 2591 | 1727 |
| 1800 | 72 | 1829.0 | 2743 | 1829 |
| 1900 | 76 | 1930.0 | 2896 | 1930 |
| 2000 | 80 | 2032.0 | 3048 | 2032 |
